TOWABLE WELDER, DIESEL, 325 AMPS

Where to find TOWABLE WELDER, DIESEL, 325 AMPS in Cleveland

Image for reference only
Actual item may look different
Click on image for larger view

Where to find TOWABLE WELDER, DIESEL, 325 AMPS in Cleveland Where to find TOWABLE WELDER, DIESEL, 325 AMPS in Cleveland

Click on above thumbnails for alternate view

4 Hour: $175.00

Daily: $175.00

Weekly: $400.00

Monthly: Call For Quote

Quantity: for a period of
4 hour(s)   day(s)   week(s)

  • Info

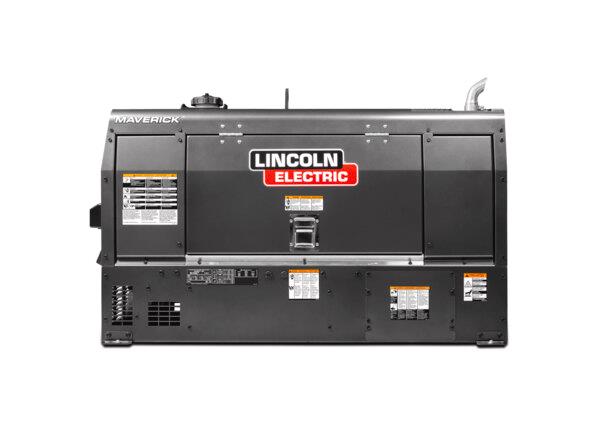

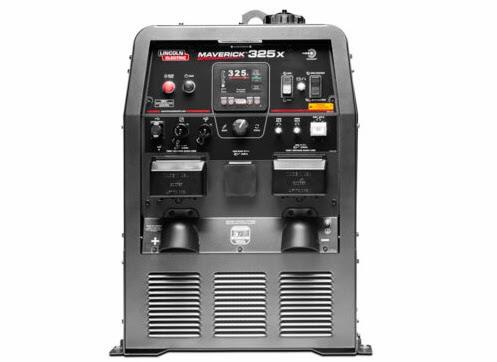

  • The Maverick 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6 weatherproof LCD screen. The machine also features CrossLinc technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.
  • Features:
  • Compact Power - Plenty of jobsite power with 325A of welding output.
  • Generator Function - Can also supply 10 kW of clean, single-phase power.
  • Optimized Performance A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs.
  • Greater Machine Control Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
  • CrossLinc Enabled Change welding parameters at the arc without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
  • Variable Engine RPM Automatically adjusts engine speed to reduce fuel consumption and engine noise.
  • Auto-Stop/Start Technology Save on fuel, avoid excess idling and reduce engine wear.
  • Typical Applications:
  • Construction & Field Erection
  • Maintenance & Repair
  • Power Generation
  • Structural Fabrication
  • Structural Welding
  • Oil & Gas
  • Dimensions: (H x W x D): 34.23 in x 21.25 in x 54.29 in
  • Machines Processes / Output Range by Mode
  • Stick (SMAW): 35 400 Amps
  • CV-Wire (GMAW, FCAW-S, FCAW-G): 13 40 Volts
  • DC TIG (GTAW): 25 250 Amps
  • Arc Gouging (CAC-A): 60 400 Amps
  • Rated Gouging Carbon Diameter: 5/16 in (8.0 mm)
  • Open Circuit Voltage: 80 Peak OCV at 3600 RPM
  • Input Hertz: 60, Input Phase: 1
  • Receptacle Types:
  • NEMA 5-20R (120V / 20A / 1~) NEMA 14-50R (120/240V / 50A / 1~)
  • Engine Brand & Model: Kubota D902
  • Engine Description: Kubota 3 Cylinder Naturally Aspirated Water Cooled Diesel
  • Engine Horsepower: 24.8 hp (18.5 kW)
  • Engine Block Size & Displacement: 54.8 cu. in (.90 L)
  • Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm)
  • Sound Rating @23 ft.: Idle: 73.5 dB, Max Load: 79.6 dB
  • Fuel Tank Size (US gal.) 11.5 US gal.
  • Oil Capacity (qts.) 3.9 qts.
  • Coolant Capacity (US gal.) 0.9 US gal.
