SCISSOR LIFTS

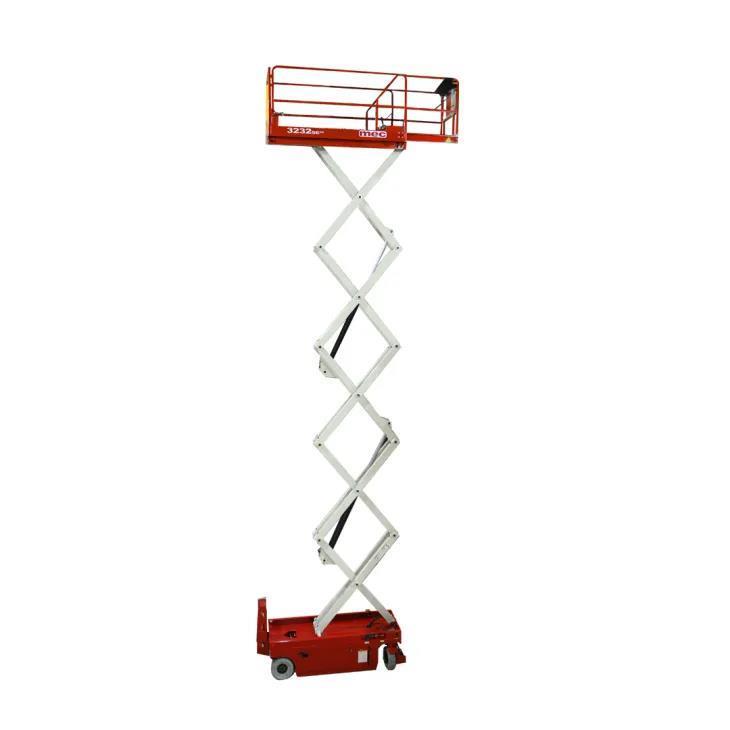

SCISSOR LIFT, 32 FT. ELECTRIC, NARROW


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $220.00

Daily: $220.00

Weekly: $475.00

Monthly: Call For Quote

Quantity: for a period of
4 hour(s) day(s) week(s)

Info

The Industry s First 32 Drive-At-Full-Height Lift, No Outriggers Required.
Less than 33" wide to fit through standard doorways and access tight spaces.
Fold-down guardrails, 78.5 stowed height passes through a standard single doorway.
550 lbs. platform capacity supports up to 2 workers and material.
3 roll-out deck extension rated at 250 lbs. capacity.
Single outlet for power to the platform and battery charging eliminates confusion.
AC direct electric drive for extended duty cycles.
MEC s Leak Containment System comes standard to help contain hydraulic leaks.
Reach Dynamics Indoor:
Maximum Working Height 32'
Maximum Platform Height 32'
Maximum Drive Height 32'
Reach Dynamics Outdoor:
Maximum Working Height 30'
Maximum Platform Height 24'
Maximum Drive Height 24'
Platform:
Lanyard Attachment Points (4)
Platform Entry Full Height Swing Gate
Total Lift Capacity 550 lbs
Maximum Capacity (Occupants) 2 indoors, 1 outdoors
Platform Length x Width (Extended) 133.1" x 31.8"
Platform Length x Width (Retracted) 97.6" x 31.8"
Roll-Out Deck Extension 36.5"
Capacity on Deck Extension 250 lbs.
Wheelbase 73.6"
Key Overall Dimensions:
Length Stowed (Ladder/No ladder) 97.5" / 88.8"
Width 32.7"
Overall Height - Rails Up 98.8"
Overall Height - Rails Folded 78.5"
Weight (approximate) 7,145 lbs.
Drive Performance:
Type Proportional
Inside Turning Radius 0"
Gradeability 25% (14 )
Ground Clearance - Lowered 3.9"
Ground Clearance - Elevated 0.7"
Maximum Drive Speed Lowered 3.1 mph
Maximum Drive Speed - Elevated 0.5 mph
Lift/Lower Speed 52 / 38 seconds
Tires, Non-Marking 15" X 5"
Power Source: (4) 12V AGM Batteries, 240 Ah

Also check the following item(s) related to the above:

* Prices are subject to change. Applicable sales tax, delivery, damage waiver, and other fees are not included in this price estimate.

* Please call us with any questions about our scissor lift 32 ft. electric narrow in Chagrin Falls, Cleveland Heights, Eastlake, Lorain, Streetsboro, and Painesville OH, serving Northeast Ohio.
